AD6 6-Piston Caliper

The ProdigyWerks AD6 Caliper is a 6-piston caliper that is designed, engineered, machined and built for high performance vehicles.  This particular caliper features two 38mm pistons, two 32mm pistons and two 27mm pistons on each caliper which delivers powerful clamping power over factory caliper as well as most 4-piston calipers in today's market.  The issue with factory brakes is always the calipers, they are floating with usually only ONE large piston and small brake pad size, thus small braking surface. This kit replaces the inferior factory calipers with our 6-Piston Caliper kit that will improve pedal modulation and stopping performance significantly.

Product Specifications:

  • Caliper Size: 285.50mm L x 157mm W x 88.5mm H

  • Caliper Body Construction: 2-Halves

  • Caliper Body Material: 6061-T6 Forged Extrusion

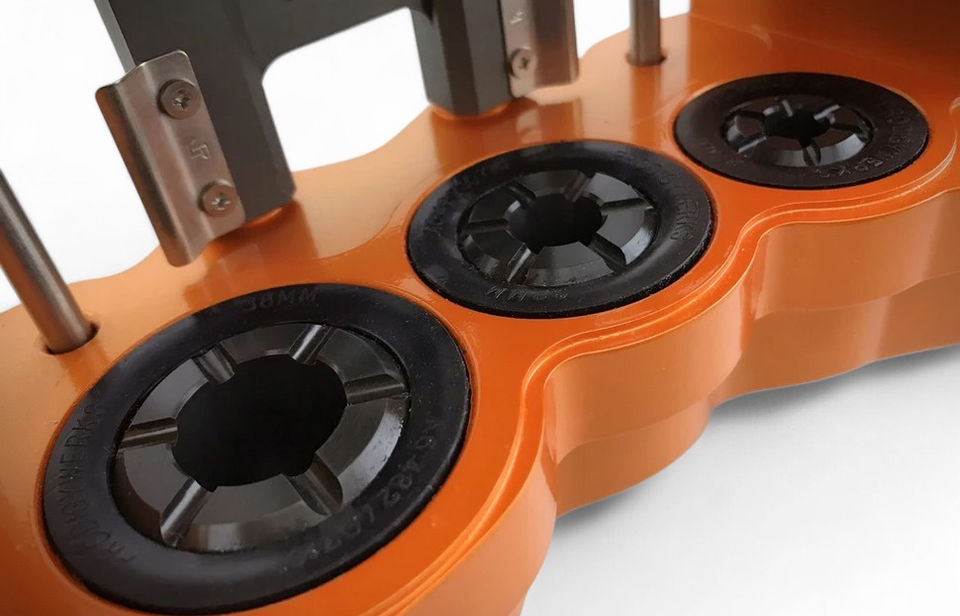

  • Piston Sizes: Ø 38mm x 2 / Ø 32mm x 2 / Ø 27mm  x 2 Pistons per caliper

  • Piston Material: 6061-T6 Billet

  • Piston Style: Vented

  • Piston Finish: Type III Hard Anodized

  • Weight Per Caliper: +/- 3450g (Without Pads)

  • Dust Boot: Exterior

  • Oil Line: Exterior

  • Min. to Max Disc Size: Ø 330mm (13") to Ø 410mm (16") Diameter

  • Min. to Max Disc Thickness: 28mm to 34mm

  • Brake Pad Sizes:

            Option A: 149mm L x 81.8mm H x 17mm W (D 54mm)

            Option B: 149mm L x 81.8mm H x 17mm W (D 58mm)

  • Caliper Finish: Type III Hard Anodized + / Powder Paint Coated

  • Available Colors: Milano Red, Sports Yellow, Stealth Black, Endurance Orange.

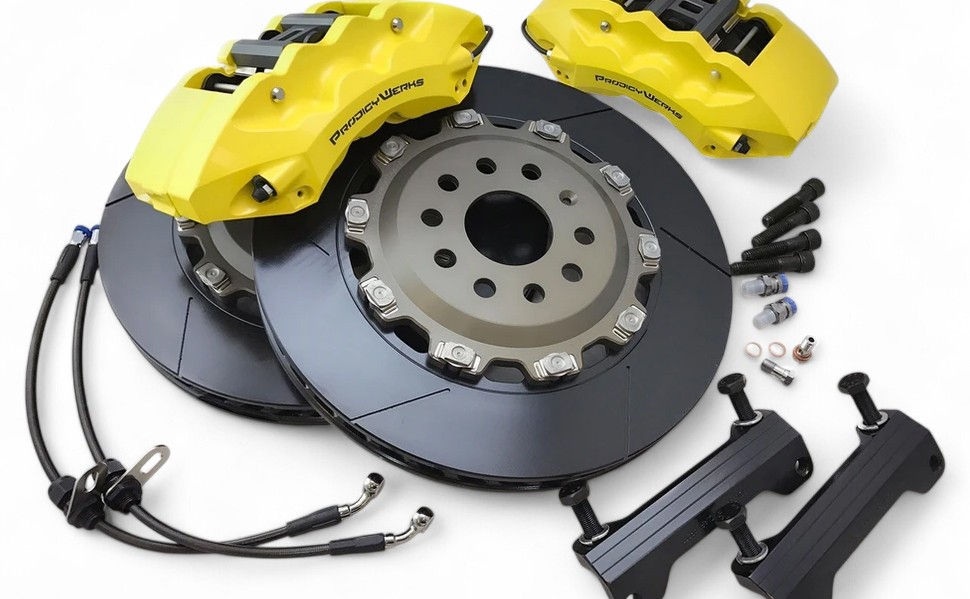

Our AD6 6-Piston Big Brake Kit currently match with our ProdigyWerks 2-piece design floating brake discs and comes in two different sizes, the 330mm x 32mm (13") and 356mm x 32mm (14").  We specifically work with the disc thickness of 32mm to better handle thermal stress during extreme driving conditions.  We also have Carbon Ceramic Floating Discs kit options to match with our AD6 6-Piston Caliper with the disc size of 380mm and 390mm.  Our Carbon Ceramic Floating disc assembly each only weights approx. 5.50kg to 6.50kg each. For more information, see Carbon Ceramic Brake Discs or visit our Carbon Ceramic Floating Brake Discs page.
