FS6 6-Piston Caliper

Introducing the ProdigyWerks FS6 Caliper, a leap forward from its predecessor, the AD6 6-Piston Caliper. With a commitment to excellence, the FS6 caliper boasts a series of enhancements that mark a substantial advancement. Compared to the AD6, the FS6 boasts an impressive 20% increase in structural integrity, achieved through its innovative 6061-T6 forged two-halves construction. Notably, the FS6 showcases a lighter body weight, all while embracing a sleeker design that harmonizes seamlessly with a wide range of aftermarket wheels.

For those seeking the pinnacle of performance, the FS6 offers a dedicated race variant: the FS6 T1R (Tier 1 Racing). Delve deeper into the FS6 T1R to uncover a realm of specialized features crafted explicitly for track use, setting a new standard in high-speed performance.

At the heart of the FS6 caliper's power lies a meticulously designed configuration. The caliper boasts a symphony of engineering: two 38mm vented pistons, two 32mm vented pistons, and two 27mm vented pistons, combining to create an awe-inspiring 15.54 square inches of piston surface per axle. This orchestration translates into an astounding 27,972 pounds of clamp power at 1800 psi, channeling unparalleled stopping force.

Bid farewell to lackluster factory calipers as the FS6 6-Piston Caliper takes the helm. Elevate your driving experience with an exponential boost in pedal modulation and stopping performance. With the FS6, every aspect of your journey is poised for an extraordinary upgrade.

Product Specifications:

  • Caliper Size: 274mm L x 162mm W x 87mm H

  • Caliper Body Construction: 2-Halves

  • Caliper Body Material: 6061-T6 Forged

  • Piston Sizes: Ø 38mm x 2 / Ø 32mm x 2 / Ø 27mm  x 2 Pistons per caliper

  • Piston Material: 6061-T6 Billet

  • Piston Style: Vented

  • Piston Finish: Type III Hard Anodized

  • Weight Per Caliper: +/- 3280g (Without Pads)

  • Dust Boot: Exterior

  • Oil Line: Exterior

  • Min. to Max Disc Size: Ø 320mm (13") to Ø 410mm (16") Diameter

  • Min. to Max Disc Thickness: 28mm to 34mm

  • Brake Pad Sizes:

            Option A: 149mm L x 81.8mm H x 17mm W (D 54mm)

            Option B: 149mm L x 81.8mm H x 17mm W (D 61mm)

  • Caliper Finish: Type III Hard Anodized + / Powder Paint Coated

  • Available Colors: Milano Red, Sports Yellow, Stealth Black, Energy Green.

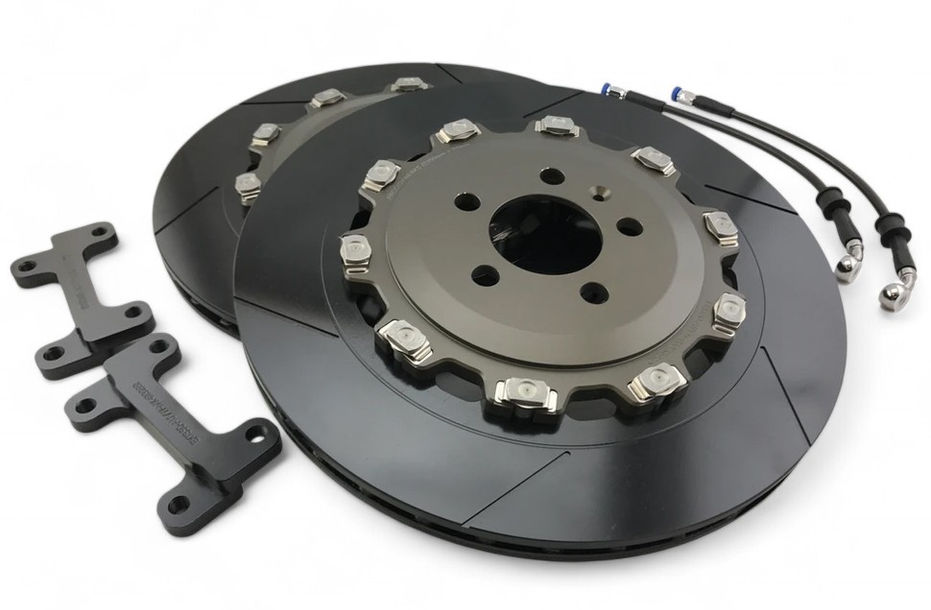

Our FS6 6-Piston Big Brake Kit currently match with our ProdigyWerks 2-piece design floating brake discs and comes in two different sizes, the 330mm x 32mm (13") and 356mm x 32mm (14").  We specifically work with the disc thickness of 32mm to better handle thermal stress during extreme driving conditions.  We also have Carbon Ceramic Floating Discs kit options to match with our FS6 6-Piston Caliper with the disc size of 380mm and 390mm.  Our Carbon Ceramic Floating disc assembly each only weights approx. 5.50kg to 6.50kg each. For more information, see Carbon Ceramic Brake Discs or visit our Carbon Ceramic Floating Brake Discs page.

​
